EV Motors and Generators Panel Trainer

The EV Motors and Generators Panel Trainer is part of our brand new range of Hybrid and EV resources - designed to provide students with the skills and knowledge to maintain and repair Electric and Hybrid vehicles.

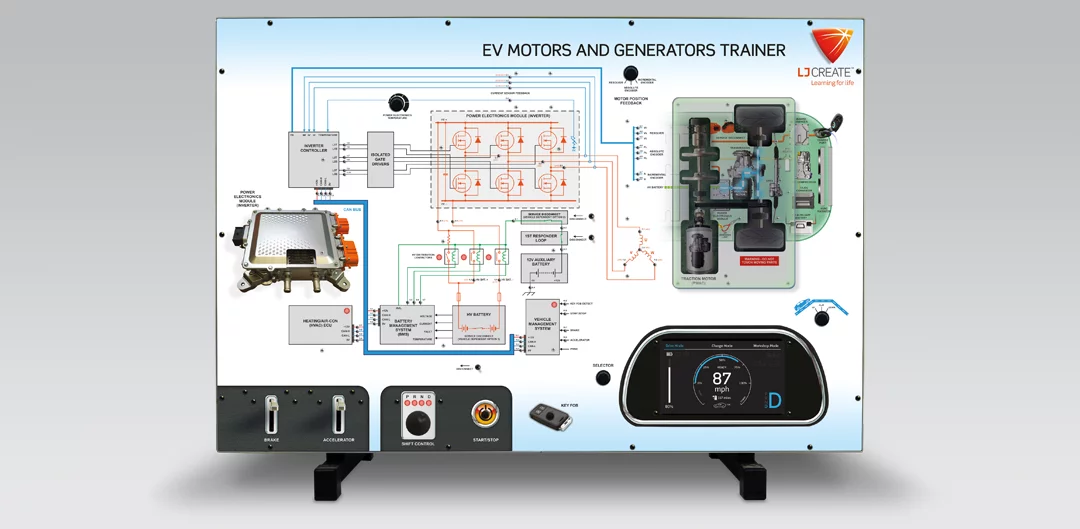

The EV Motors and Generators Panel Trainer (742-01) is focussed on motor speed control, and uses a variety of sensors to feed back motor position and speed. Electrical circuit operation is illustrated under different conditions – Throttle, Brake, and Direction of Travel.

The trainer includes a variety of test points for vehicle electrical components including the facility to test each phase of a 3-phase motor. A series of pre-set scenarios are included – which are used to set various parameters of the vehicle to reflect different operating conditions. As well as these scenarios, a series of switchable faults for fault diagnostic exercises are incorporated with an onboard scan tool also included for reading fault codes.

The EV Motors and Generators Panel Trainer operates at scaled voltages that are completely safe for users, the trainer also uses conveniently scaled timeframes for driving distance and battery charge consumption.

Typical Practical Tasks Include:
  • System Start-Up Procedures
  • Disabling the HV System
  • Operation of the Inverter Circuit
  • Pulse Width Modulation Control
  • The Three Phase Traction Motor
  • Generator Operation
  • Troubleshooting:
    • Drivetrain Faults
    • IGBT and PEM Components
    • Sensors
    • The Start-Up Circuit

FIND OUT MORE

Download a copy of our EV Auto Repair Brochure to see our complete range products available for Hybrid and Electric Vehicle:

Download our Electric Vehicle Brochure


Did you find what you were looking for?
Take a look at our full range of automotive training resources

How to order

Product:
EV Motors and Generators Panel Trainer
Code:
742-01

Please call LJ Create at
1-800-237-3482 or
email info@ljcreate.com.

A member of our staff will be happy to advise you with your order and provide you with further options where appropriate.
