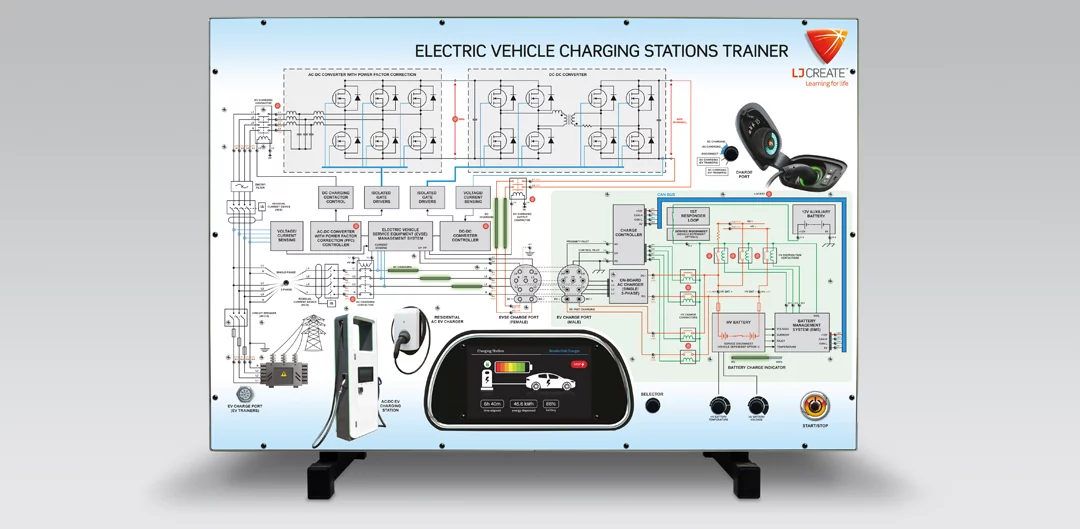

Electric Vehicle Charging Stations Panel Trainer

The Electric Vehicle Charging Stations Panel Trainer (743-01) provides students and instructors with the opportunity to demonstrate, investigate and fault-find the circuitry and operation of off-car charging systems.

The panel simulates the operation of both domestic and commercial charging stations for electric vehicles,  supporting the common types of charging systems – including single-phase AC, 3-phase AC, and DC fast charging.

The Electric Vehicle Charging Stations Panel Trainer operates at scaled voltages that are completely safe for users and uses conveniently scaled timeframes for battery charging. A series of switchable faults for fault diagnostic exercises are also incorporated.

Typical Practical Tasks Include:

• AC Charging Station – Single Phase and Three Phase
• On-Board Vehicle Charging Circuit
• DC Fast Charging Station Operation
• Voltage and Current Sensing
• Charging Station Safety – RCD
• Charging Station and Vehicle Communications
• Electric Vehicle Supply Equipment Management (EVSE)
• Troubleshooting:
  • Connector and Cable Failures
  • Isolation Faults
  • Grid Phase Imbalance
  • EVSE Faults
  • The Effects of Over-Temperature
