Bus and Truck Charging Stations Panel Trainer
This trainer is the latest addition to our Hybrid and Electric Vehicle product range. Designed to complement the existing line-up, it is designed to illustrate the operation of commercial and on-board charging systems for electric buses and trucks.

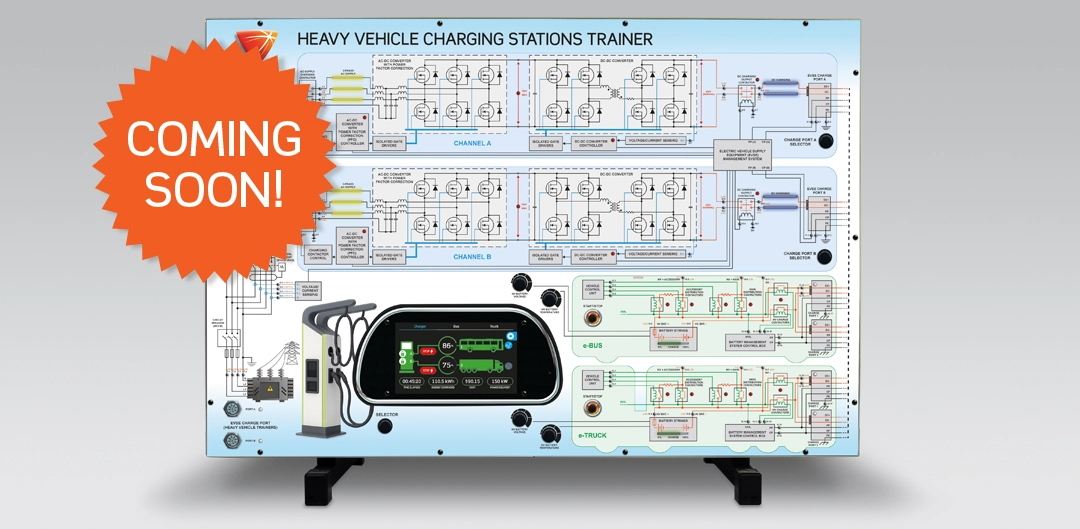

The Heavy Vehicle Charging Stations Panel Trainer (746-01) provides students and instructors with the opportunity to demonstrate, investigate, and fault-find a simulation of a multi-vehicle heavy electric vehicle charging station.
The trainer is designed to illustrate the operation of public and private sector charging systems for buses and goods vehicles. The trainer provides a mimic of the electrical power flow(s) and includes test points at a safe voltage level to allow for investigation of electrical circuits.
To facilitate the development of techniques in diagnostics and fault-finding skills, the panel includes a range of fault-insertion options to simulate typical real-world system malfunctions.
The Panel Trainer Provides the Following Features:
- LCD panel with charging station and on-board visualization
- Simulation and visualisation of electrical power flow
- On-board bus and goods vehicle simulation.
- Selection switch for charging contactors or ports.
- Port to connect to other LJ Create EV panel trainers
- Start/stop button
- Service disconnect switch
- Controls to adjust HV battery voltages and temperatures
- Terminals to make DC and AC circuit measurements
- Manual or automatic fault insertion (16 Faults)
