Injection Moulder Assembly Kit

The Injection Moulder Assembly Kit contains a set of parts and associated instructions - to provide students with an opportunity to learn and practice the hand skills required for maintenance of mechanical and electrical equipment.

Students are led, via comprehensive instructions, through the process of assembling and testing a working plastics injection moulder. The Injection Moulder Assembly Kit contains all the parts necessary to complete the task, together with spare items where required. The kit contains over 120 separate components.

There are over 35 steps in the assembly process and these steps include: drilling, reaming, pressing, fastening with screws, use of jigs, fitting of sleeves and gaiters, lubrication, cutting, wiring and soldering.

The completed product is a working moulder capable of melting plastic granules and injecting them under pressure into a mould. The completed machine must incorporate automatic temperature control and shut-off which requires calibration of the transducer.

Injection Moulder Assembly kit includes:
  • Set of components to assemble Moulder
  • Spare parts package
  • Lesson pack including detailed assembly,
    testing and disassembly instructions.
  • Plastic granules
  • Protective gloves and eyewear
  • Mould(s)
  • Cleaning kit
  • Lubricants
Related Products

Moulder Assembly Kit – Refill Pack (350-10/C6)

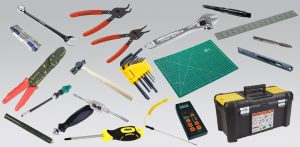

Moulder Assembly Kit – Tool Set (350-10/ATS)


OTHER SIMILAR PRODUCTS

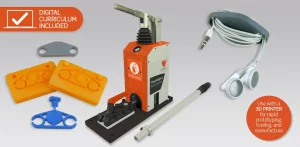

Fully assembled Injection Moulding Trainer (350-01)

How to order

Product:
Injection Moulder Assembly Kit
Code:
350-10

Please call LJ Create at
+44 (0)1603 748001 or
email info@ljcreate.co.uk.

A member of our staff will be happy to advise you with your order and provide you with further options where appropriate.
