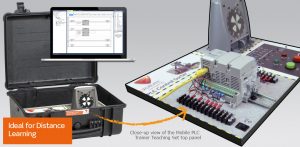

Mobile PLC Trainer Teaching Set (Siemens)

This Mobile PLC Trainer Teaching Set offers a platform that enables students to perform a comprehensive range of programming tasks culminating in the control of the unit using an industrial programmable logic controller (PLC).

The Mobile PLC Trainer Teaching Set Siemens (291-04/SI) is designed to sort metal discs one at a time, checking them for a machined hole and dispensing them into to one of two bins based upon programming logic.

The speed of the sorting disc is controlled using an analogue input signal. The position of the sorting disc can be determined using the in-built rotary encoder.

Students develop their understanding of PLC programming using our unique software simulation of an industrial work-cell. The trainer is housed in a mil-spec waterproof case for ease of transportation and shipping.

The supplied STEM learning materials have been designed to provide practical real-world problem solving tasks and activities within the classroom or lab environment.

Mobile PLC Trainer Teaching Set (Siemens) – Typical Topic Areas Include:
  • Industrial Controllers
  • Logic (AND, OR and NOT), Truth Tables & Step Logic Latching Actuators
  • Counting Parts and Timing Events Controlling Motor Speed and Position
  • Sorting Parts
Industrial Control Application Components:
  • Manual override switch
  • Manual control switches x4
  • Input/Output LED indicators x7
  • Push buttons (Red/Green) x2
  • Lamp indicators (Red/Green) x2
  • Part bins x2
  • Analog speed control dial
  • Variable speed DC motor controlled sorting disc
  • Infra-red hole detection sensor
  • Two channel rotary encoder with index position
  • Connection block and rack bar for PLC extension

Related Products

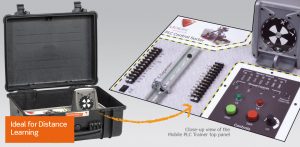

Mobile PLC Trainer (291-04)
Mobile PLC Trainer Teaching Set – Allen Bradley (291-04/AB)

How to order

Product:
Mobile PLC Trainer Teaching Set (Siemens)
Code:
291-04/SI

Please call LJ Create at
+44 (0)1603 748001 or
email info@ljcreate.co.uk.

A member of our staff will be happy to advise you with your order and provide you with further options where appropriate.
