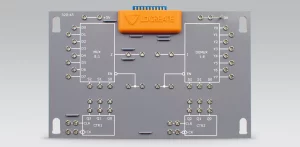

PAM/TDM Communications Card

This practical resource introduces students to a 2-channel, time-division multiplexed PAM Transmitter/Receiver system through a wide range of practical activities.

The practical activities based around the PAM/TDM Communications Card (320-55) are available within the digital curriculum materials provided with our Electronics Study Trainer.

Practical tasks include the following:
  • Introduction to Pulse Amplitude Modulation
  • Sample Rate and PAM Frequency Content
  • Time Division Multiplexing of PAM Signals
  • TDM Transmission – Clock and Synchronization

Please Note: This card requires access to an Electronics Study Trainer (320-00).

How to order

PAM/TDM Communications Card

Please call LJ Create at
+44 (0)1603 748001 or

A member of our staff will be happy to advise you with your order and provide you with further options where appropriate.
